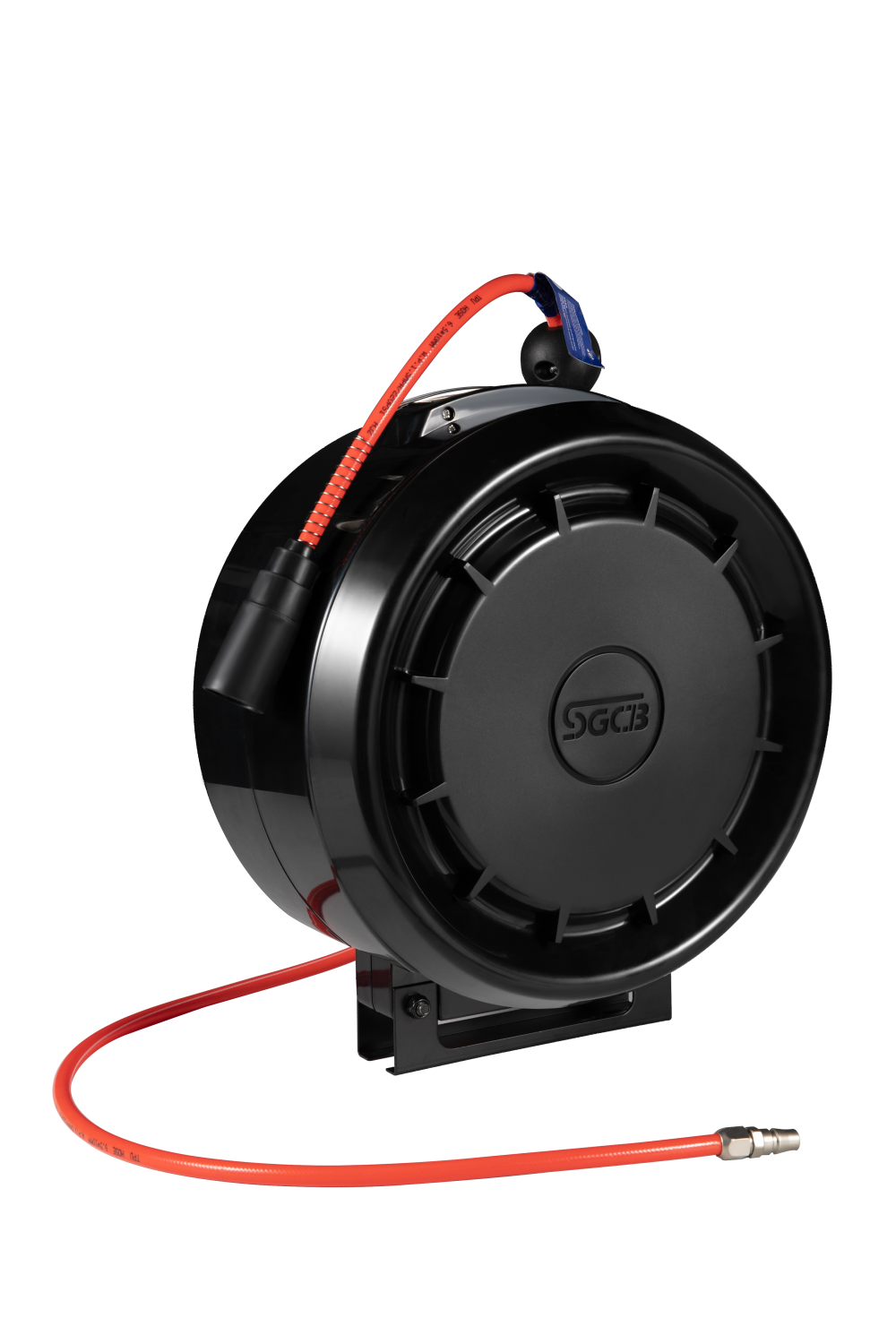

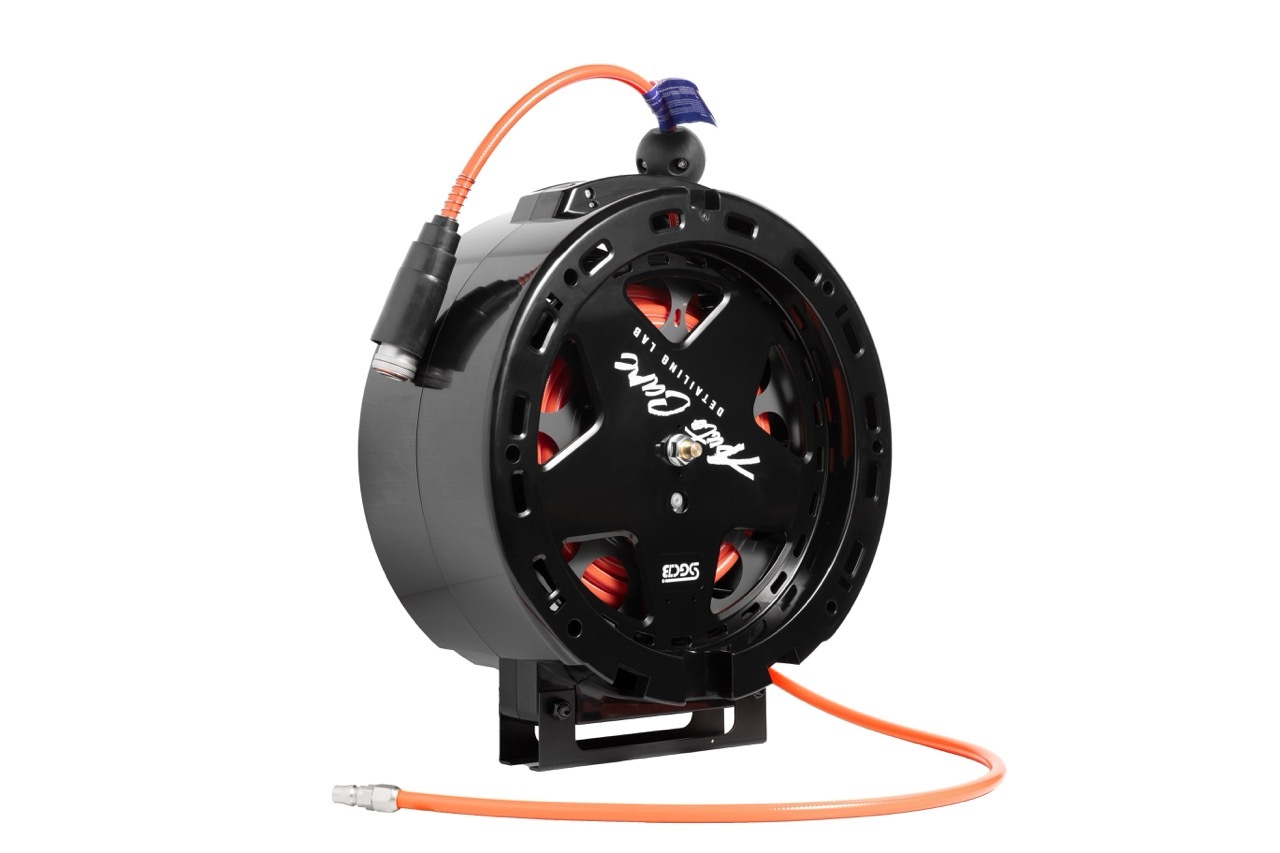

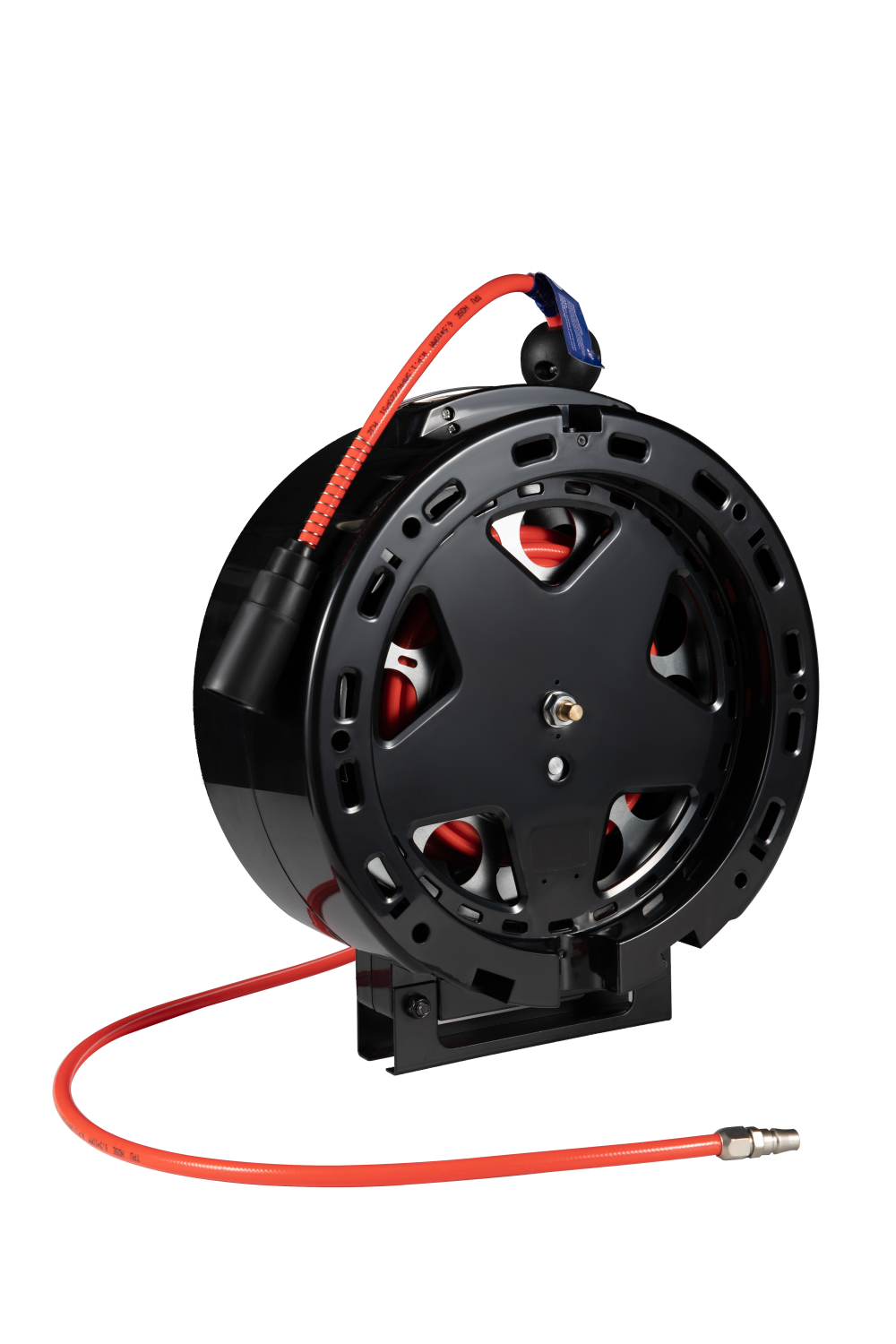

SGCB Modular Air Hose Reel Auto Cleaning Modular Pneumatic Hose Set

Name: SGCB Modular Air Hose Reel Auto Cleaning Modular Pneumatic Hose Set
Brand: GUANGZHOU SGCB CO.,LTD
SKU: SGGF235 & SGGF253 & SGGF249 & SGGF257
Availability: InStock
Rating: 5 (1 reviews)

No.SGGF235 & SGGF253 & SGGF249 & SGGF257

SGCB's sggf235/242 features high-strength ABS plastic, copper core with German seals, and a durable steel reel. It's designed for durability and easy use, with a PU three-layer tube and 1.2Mpa pressure.

Model No.:

SGGF235 & SGGF253 & SGGF249 & SGGF257

Color:

Black or White

Pipe Diameter:

6.5*10.0mm(SGGF235) or 8.0*12.0mm(SGGF253 & SGGF249 & SGGF257）

Pipe Length:

10M

Tube:

PU Three layers of yarn tube

Inlet connector:

¼"Male Quick Connect (SGGF235 & SGGF253) US connector PM20（SGGF249） EU connector PM1/4 （SGGF257)

Export connector:

¼" Female Quick Connect (SGGF235 & SGGF253) SM20 （SGGF249） SM1/4 （SGGF257)

Pressure:

1.2Mpa

Size:

35.5*16*36.6cm

Pipe diameter:

6.5*10.0mm

8.0*12.0mm

Connector type:

China

Get Latest Wholesale Price

Frim Housing

ABS engineering-grade housing features high density, high strength, wear resistance and durability

Durable Pipe

Select polyether TPU laminated yarn tubes ( three layers) achievescorrosion resistance, explosion-proof, wear resistance ,high-temperature resistance and cold resistance.

Reposition In Second

Steel painted spring, durable and with neatly arranged inner pipes, makes automatic positioning/repositioning easy. Official over 10,000 pull tests pasted.

Long Life Span

Use copper axles, comply with national standards, make the lifespan longer.

Application Scenarios

It integrates air, electricity and water, and is suitable for car 4S stores, detailing studios, auto repair shops, car wash centers (one-stop construction), high-end workshops and multi-station maintenance centers.

Electric hose reel:

Automatically retract the wires, provide waterproof power supply, and avoid the risks of messy wires, tripping and electric shock.

Air hose reel:

Conveys compressed air, used for water blowing and dust removal, as well as driving pneumatic tools.

Water hose reel:

Normal pressure water supply/cleaning agent, suitable for fine cleaning, the water output is gentle and does not damage the paint.

Retail (water/air/electricity/lids)

▷Minimum Order Quantity (MOQ): 1 SET
▷Product Box Dimension (LxWxH): 43*38*21cm/43*38*21cm/43*38*21cm/36*36*7cm
▷Single Unit Gross Weight: 5.2kg/5.42kg/5.6kg/0.95kg
▷Packing Form: in box;
▷Shipping: SF Express, DHL, Fedex, UPS, etc.

Wholesale (water/air/electricity/lids)

▷Minimum Order Quantity (MOQ): 20 SETS
▷Packing Quantity per Carton: 4PCS/4PCS/4PCS/5PCS
▷Carton Size: 77*46*44cm/77*46*44cm、77*46*44cm/37*37*40cm
▷Carton Gross Weight: 22.4kg/23.3kg/24kg/5.5kg
▷Pallet Size: 120×110×15 cm
▷Lead Time: 1–2 working days for in-stock goods; 21–28 working days for bulk orders
▷Shipping Terms: EXW, FOB Guangzhou, CIF/DDP/DAP available for bulk orders

Customization (water/air/electricity/lids)

▷Minimum Order Quantity (MOQ): 100 SETS
▷Customization Services:
· Custom private label
· Custom plugs and pipe length
· Custom retail box, manual, and package
· Custom language, certification, and market specifications
▷Lead Time: 60 working days

FAQ

Frequently Asked Question

Is the drum detachable？

Single reels can be hung or attached to the wall. Reels can be interlocked and linked to form freely combinable modules, and both sides can be covered by end covers.

10 meters refers to that part of the length？

A 1-meter-long fixed-length inlet pipe at the top, an 8-meter-long pipe wound inside, and a 1-meter-long outlet pipe suspended from the bottom.

Can the pipe be lengthened？

The bottom suspended outlet pipe can be extended by 5 meters, making the main pipe 15 meters long.

Is the water pipe normal pressure water or high pressure water?

Normal pressure water.

What are the options for electric drums?

Dual-wire model without ground wire and three-wire model with ground wire.

Is the plug of the electric hose reel fixed?

Plugs and sockets that meet Chinese standards（Type I), European standards(Type F), American standards(Type B) and British standards(Type G) are available for selection.
